Selective masking case 5
| Layers | Polys | Lines | Points | Labels |
| Symbol layers | 0: black roads 1: yellow roads |
0: orange circles 1: marker mask, bigger circle (only visible in mask image) |
||
| Masks | Points/1 masks Lines/0 | Buffer masks Lines/1 | ||

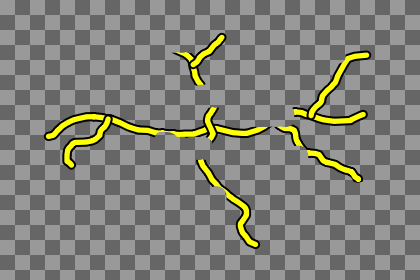

| First pass |  |
 |
 |
 |
| Mask image (still in first pass) |
 |
 |
Layer lines_ef106202_b4e1_49c4_a3d0_b65eb8bbb6d6 : Different sets of symbol layers are masked by different sources ! Only one (arbitrary) set will be retained !
| Second pass | Lines without 1 |
| Composition with merged mask |  |
| Second pass image inside mask |  |
| First pass image oustide mask |
 |

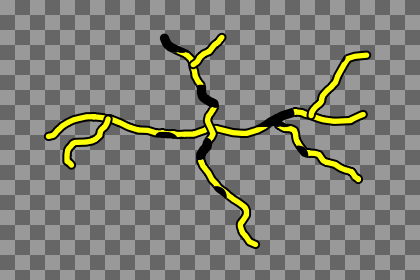

| Updated first pass image |  |
Final image
